November 1, 2016

Biochemistry

mindraylogo



ba88aBA-88a
A semi-automatic chemistry analyzer with large touch-screen and easy-to-use operation software

Typical Users:

Small laboratories; Pet hospitals

Features:
. 7.0” TFT touch-screen & pop-up keypad
. Two test mode: flowcell or cuvette
. Supports bi-chromatic tests for end point, fixed-time, kinetics methods
. External keyboard or mouse support via USB
. User-friendly interface and multi-language operation software
. Built-in thermal printer

pdf Brochure

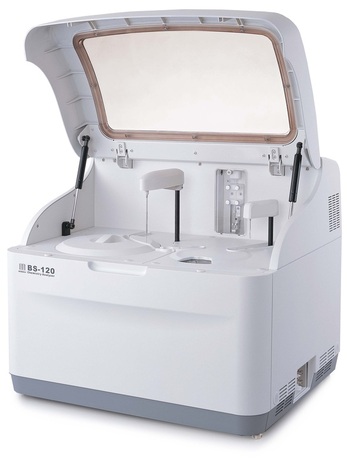

BS-120
bs120
A bench-top, discrete and random access clinical chemistry analyzer offering 100 tests per hour

Typical Users:
Small laboratories (used as a main instrument); medium-sized laboratories (used as a back-up)

Features:
. 100 tests per hour, up to 300 tests per hour with ISE (K, Na, Cl, Li)
. 24-hour refrigeration for reagent tray
. Flexible reagent/sample tray
. Independent mixing stirrer
. Robust and user-friendly operation software
. Best cost-efficiency
. Pre-dilution and post-dilution for sample
. Bi-directional LIS interface

pdf  Brochure

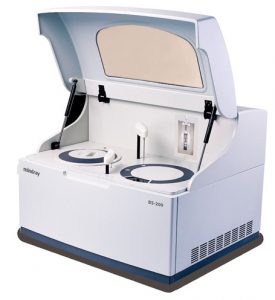

bs200



BS-200

A bench-top, discrete and random access clinical chemistry analyzer offering 200 tests per hour.

Typical Users:
Small laboratories (used as a main instrument); medium-sized and large laboratories (used as a back-up)

Features:
• 200 tests per hour, up to 330 tests per hour with ISE (K, Na, Cl)
• 24-hour refrigeration for reagent tray
• Built-in bar code scanner
• Independent mixing stirrer
• Robust and user-friendly operation software
• Multi-language version available
• Pre-dilution and post-dilution for sample
• Bi-directional LIS interface

pdf Brochure

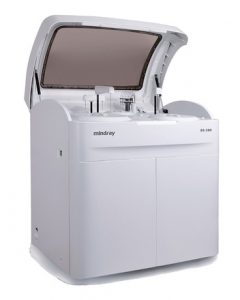

bs380

BS-380

A floor-standing, discrete and random access clinical chemistry analyzer offering a constant 300 tests per hour.

Typical Users:
Medium-sized laboratories (used as a main instrument); large laboratories (used as a back-up)

Features:
. Constant 300 tests per hour, up to 450 tests per hour with ISE (K, Na, Cl)
. 24-hour refrigeration for reagent tray
. Reusable cuvettes with auto-washing station
. Independent mixing stirrer (two-in-one)
. Automatic probe cleaning, liquid level detection and crash protection (vertical & horizontal)
. Reversed grating system with 12 wavelengths
. Built-in bar code scanner
. Pre-dilution and post-dilution for sample
. Bi-directional LIS interface

pdf  Brochure

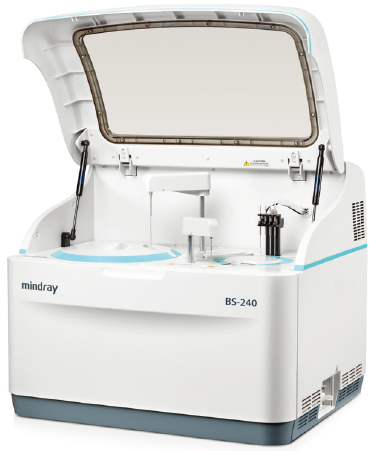

BS-240

BS-240 is a multi-functional benchtop clinical chemistry analyzer with a throughput at 200 T/H. Though with a compact size, it has achieved a host of advanced functions never before found on a like product in the market, making it an optimal chemistry solution for small laboratories and a back-up tool for mid-to-high end laboratories.

  • One of the smallest 200 T/H chemistry analyzers in the market, achieving maximum space saving;
  • Large capacity of 80 reagent positions and 40 sample positions extendable to 80.
  • Step-by-step maintenance guide for easy operation;
  • Upgraded auto-washing system ensures low carryover and low water consumption.
  • Smart-sampling technology enables automatic hemolysate preparation for HbA1c test. Pretreatment-free operation guarantees high productivity.
  • A minimum of 100μl reaction volume for reagent saving.
pdf

Brochure

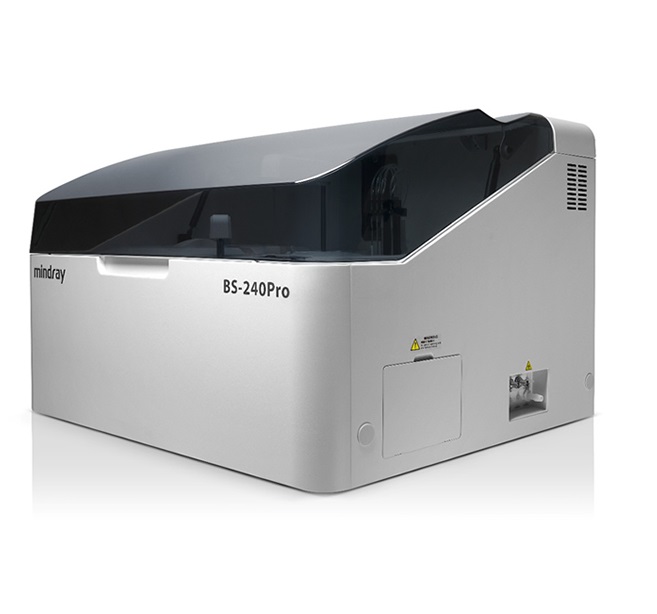

BS-240 Pro

BS-240 Pro is a whole new generation of benchtop chemistry analyzer, with smaller footprint, robust functionality, user-friendly designs and long uptime.

  • Constant throughout of 240 photometric tests per hour Large and flexible capacity of up to 100 sample or 100 reagent positions
  • Industrial-leading cost efficiency of 100ul minimum reaction volume
  • Considerate designs to make the analyzer more user-friendly HbA1c smart-sampling technology allows onboard hemolysis for HbA1c assays
  • Intuitive and powerful software featuring one key calibrator import, sample carryover setup, and more

pdf  Brochure


CS-400 Auto-Chemistry Analyzer

The CS-400 auto-chemistry analyzer is a high-performance routine analyzer. It is the ideal instrument for medium sized laboratories. It offers a performance of up to 88 photometric items and 3 ISE items analysis simultaneously.
> Constant throughput 400 tests per hour for photometry test and the maximum throughput is 800 tests per hour with a ISE unit (K, Na, Cl)
> Holographic concave flat field grating with rear spectrophotometry and cluster optical path to achieve micro volume detection of reaction solution.
> 60nm polished probe with functions of clot detection, collision protection and automatic resetting.
> Liquid level detection to reduce carry-over contamination on probe surface.
> 2 refrigerated reagent compartments with 90 reagent positions and 1 sample compartment with 115 sample positions.
> Bi-directional LIS/HIS system to realize remote operation, and minimal maintenance.

pdf  Brochure


CS-480 Auto-Chemistry Analyzer

Compact Size with Robust Function
> Constant throughput 400 tests per hour for photometry test and the maximum throughput is 800 tests per hour with a ISE unit (K, Na, Cl)
> Holographic concave flat field grating with rear spectrophotometry and cluster optical path to achieve micro volume detection of reaction solution.
> Polished probe with functions of clot detection, collision protection and automatic resetting.
> Reliable refrigerated system for reagents and sample positions.
> The on-board hemolysis function, realize automatically whole blood test for HbA1c
> Auto-dilution and Auto-rerun function
> Bi-directional LIS/HIS system to realize remote operation, and minimal maintenance.

pdf  Brochure


CS-600B Auto-Chemistry Analyzer

> Constant throughput 600 tests per hour for photometry test, and up to reach 1000 tests per hour with ISE unit (K, Na, Cl)
> Holographic concave flat field grating with rear spectrophotometry and cluster optical path to achieve micro volume detection of reaction solution.
> 60nm polished probe with functions of clot detection, collision protection and automatic resetting.
> Liquid level detection
> 2 refrigerated reagent compartments with 90 reagent positions and 1 sample compartment with 115 sample positions.
> Bi-directional LIS/HIS system to realize remote operation, and minimal maintenance.

pdf  Brochure


CS-680 Auto-Chemistry Analyzer

Compact Size with Robust Function
> Constant throughput 600 tests per hour for photometry test and the maximum throughput is 1000 tests per hour with a ISE unit (K, Na, Cl)
> Holographic concave flat field grating with rear spectrophotometry and cluster optical path to achieve micro volume detection of reaction solution.
> Polished probe with functions of clot detection, collision protection and automatic resetting.
> Reliable refrigerated system for reagents and sample positions.
> The on-board hemolysis function, realize automatically whole blood test for HbA1c
> Auto-dilution and Auto-rerun function
> Bi-directional LIS/HIS system to realize remote operation, and minimal maintenance.

pdf  Brochure


CS-1300B Auto-Chemistry Analyzer

> Constant 900 tests per hour for photometry test, up to 450 tests per hour for ISE unit(K, Na, Cl)
> Holographic concave flat field grating with rear spectrophotometry and cluster optical path to achieve micro volume detection of reaction solution.
> Large capacity of sample disk can improve the working efficiency
> 60nm polished probes with functions of clot detection, collision protection and automatic resetting.
> Liquid level detection to reduce carry-over contamination on probe surface.
> 2 refrigerated reagent compartments with 132 reagent positions and 2 detergent positions.
> Bi-directional LIS/HIS system to realize remote operation, and minimal maintenance.

pdf  Brochure


CS-1600 Auto-Chemistry Analyzer

> Throughput of up to 1200 tests per hour, and 450 tests per hour for ISE unit(K, Na, Cl)
> Holographic concave flat field grating with rear spectrophotometry and cluster optical path to achieve micro volume detection of reaction solution.
> Large capacity of sample disk can improve the working efficiency
> 60nm polished probes with functions of clot detection, collision protection and automatic resetting.
> Liquid level detection for reagent probes
> 2 refrigerated reagent compartments with 134 reagent positions.
> Simultaneous analysis of 3 ISE items.
> Connectable to LIS/HIS system to realize remote operation and maintenance.

pdf  Brochure


CS-4000 Auto-Chemistry Analyzer

> Fully automatic, random access
> Independent module control and alternate operation to improve efficiency.
 > Throughput of up to 1000 tests per hour for each module and maximum 4960 tests per hour by matching 4 modules and 1 ISE module
> 2 Refrigerated reagent compartments for each module, 134 reagent positions for each reagent compartment
> Wavelengths: 340nm to 800nm
> Automatic clot detection and automatic checking of serum indices
> 8 stops 11 steps intelligent automatic rinsing system
> Bi-directional LIS interface, supporting remote maintenance

pdf  Brochure


CS-6400 Auto-Chemistry Analyzer

> Cutting-edge design concept– “modular combination”.
> Independent module control and alternate operation to avoid downtime.
> Customizable and flexible assembly of various module combinations.
> Throughput of up to 1600 tests per hour for each module and maximum 7360 tests per hour by matching 4 modules and 1 ISE module
> Automatic clot detection, collision protection and automatic resetting
> Automatic rerun & Automatic dilution to improve the efficiency.
> Minimal Maintenance requirements
> Bi-directional LIS interface, supporting remote maintenance

pdf  Brochure
